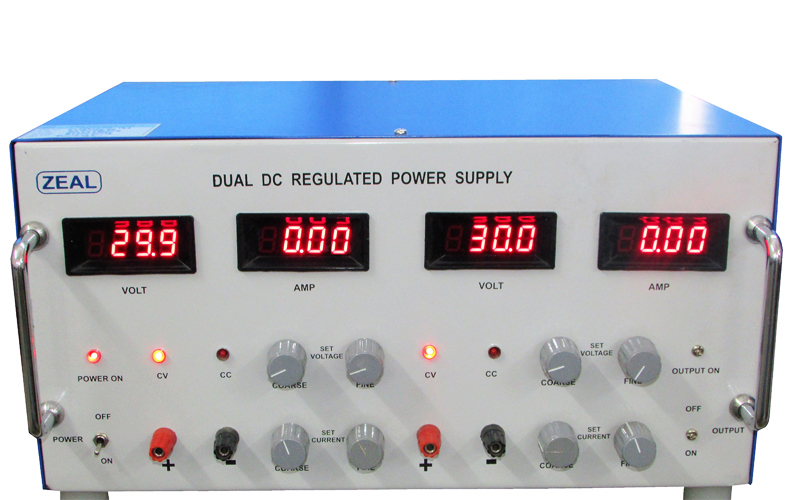

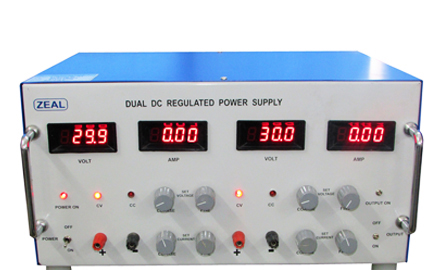

We are Manufacturer, Supplier, Exporter of Dual DC Regulated Power Supply. This product also known as DC Power Supply. We are also specialized in Calibration Services ( Calibrator ). Our setup is situated in Pune, Maharashtra, India.

Our DC regulated power supplies are widely used in various industries and Educational Institutes. The output voltage produced by DC power supply ranges from 0 to 1000 V and output current ranges from 0 to 100 Amp. Power supply are provided with Digital Panel Meters for voltage and current . They are provided overload and short circuit protections.

Technical Specification
Make ZEAL
Model ZM2PS30-2
Input Power Requirement 230V ± 10%, 50Hz
Output voltage Range 0 to 30V, (Dual)
Output Current
0 to 2A
Load Regulation 0.05% (from no load to full load)
Line Regulation 0.1% (For input 230V AC ± 10%)
Ripple 0.5% V rms max ( with / without load )
Output Stability 0.1% (after warm up of 20 min)
Digital Meter DC Voltage Current
Accuracy For Voltage : 0.5%
For Current : 0.5%
Protection Overload Short circuit.
Operating Temperature : 0 to 50 degree Celsius.
Typical ranges are available
Rating Model Series
24V/1A ZM2PS24-1
24V/2A ZM2PS24-2
24V/5A ZM2PS24-5
24V/10A ZM2PS24-10
24V/20A ZM2PS24-20
30V/1A ZM2PS30-1
30V/2A ZM2PS30-2
30V/5A ZM2PS30-5
30V/10A ZM2PS30-10
30V/20A ZM2PS30-20
60V/2A ZM2PS60-2
60V/10A ZM2PS60-10
60V/20A ZM2PS60-20
Rating Model Series
30V/30A ZM2PS30-30
30V/50A ZM2PS30-50
30V/100A ZM2PS30-100
60V/40A ZM2PS60-40
100V/2A ZM2PS100-2
100V/10A ZM2PS100-10
100V/25A ZM2PS100-25
150V/2A ZM2PS150-2
150V/10A ZM2PS150-10
200V/10A ZM2PS200-10
200V/100A ZM2PS200-100
1000V/5A ZM2PS1000-5
10V/1000A ZM2PS10-1000


Note : We Can Upgrade Products With Time To Give Improved Quality
